C / X-Band Driver Amplifiers

Bonray has launched a series of driver amplifiers operating across a frequency range of 2.7GHz to 13.5GHz. These products, fabricated using GaAs MMIC technology and featuring industry-standard packages and housings, incorporate integrated on-chip choke inductors and DC-blocking capacitors. They only require an external decoupling capacitor.This product series boasts several core advantages.

BR9216FAJ

A high-gain, high-output-power MMIC driver amplifier operates across the 2.5 GHz to 4.2 GHz frequency range.

• Powered by a +8V drain supply with a quiescent current of 740 mA, it is suitable for transmitter systems in communications, data link, and other applications.

BR9217FAJ

A high-linearity, high-output-power MMIC driver amplifier operates across the 3.5 GHz to 6.0 GHz frequency range.

• Powered by a +8V drain supply with a quiescent current of 700 mA, it is suitable for point-to-point communications, data link, and other applications.

BR9219PUG

A high-gain, high-output-power driver amplifier, with a compact size and high reliability, operates across the 7 GHz to 13.5 GHz frequency range.

• Output power > 2W, suitable for radar systems.

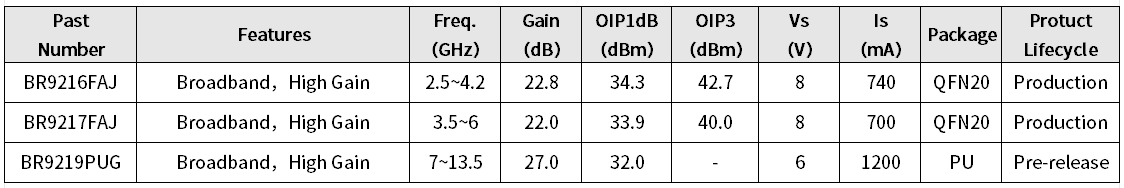

Overview of the Product Series

BR9217FAJ Brief Introduction:

Frequency: 3.5 GHz – 6.0 GHz

S21：22.0 dB @ 5 GHz

Psat：33.9 dBm @ 5 GHz

PAE：34.1% @ 5 GHz

VDD=+8V  Quiescent Current: 700 mA

Package Type：QFN20 (5 mm × 5 mm)

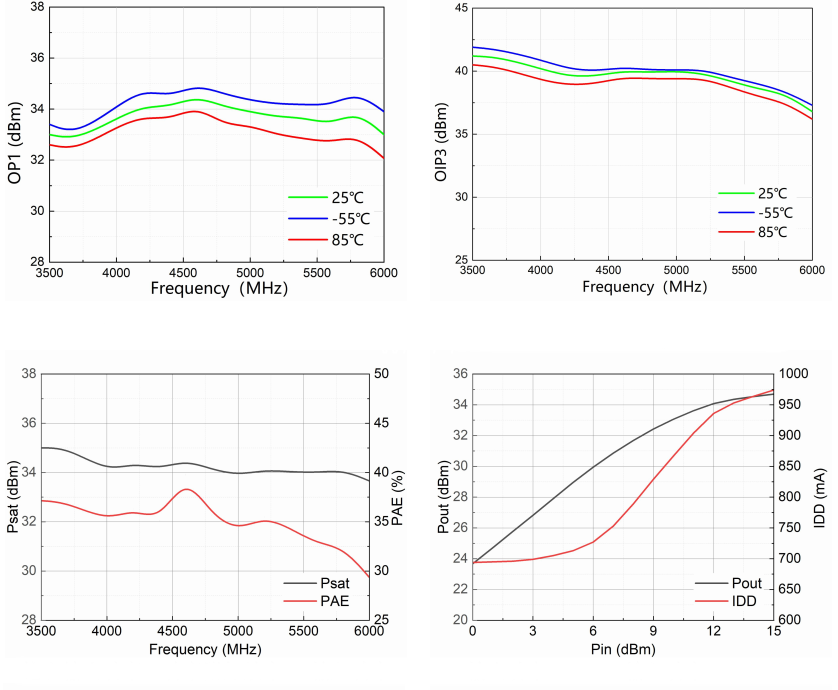

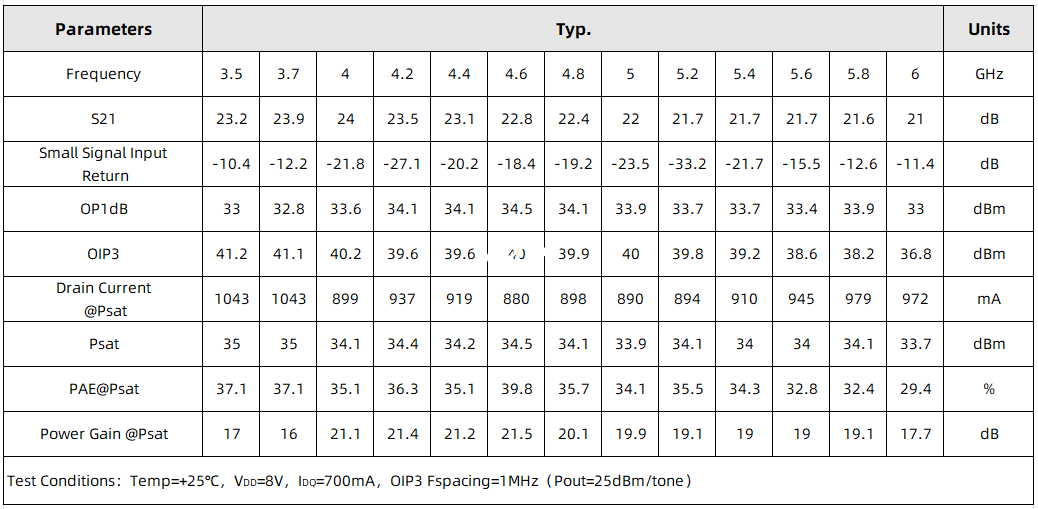

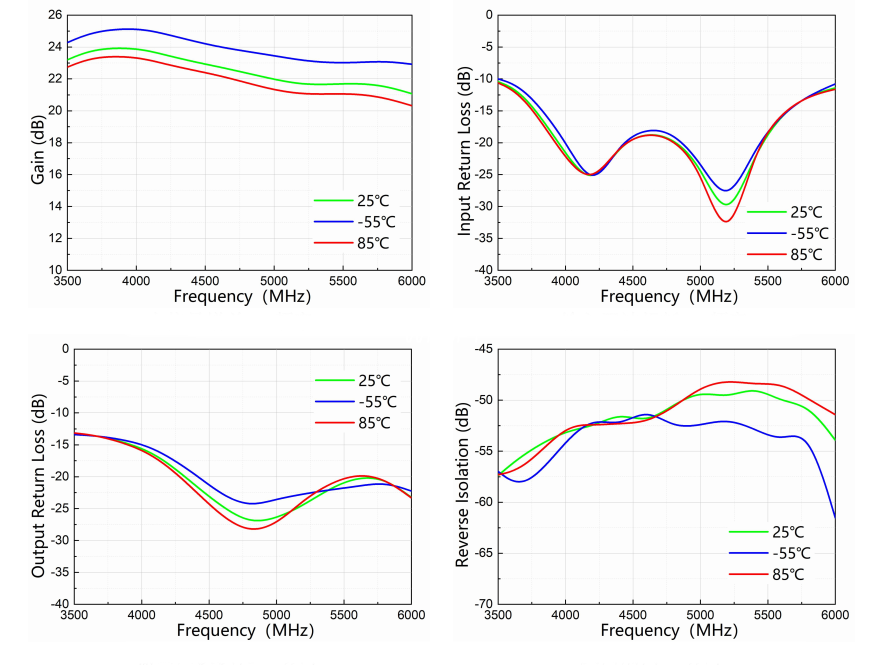

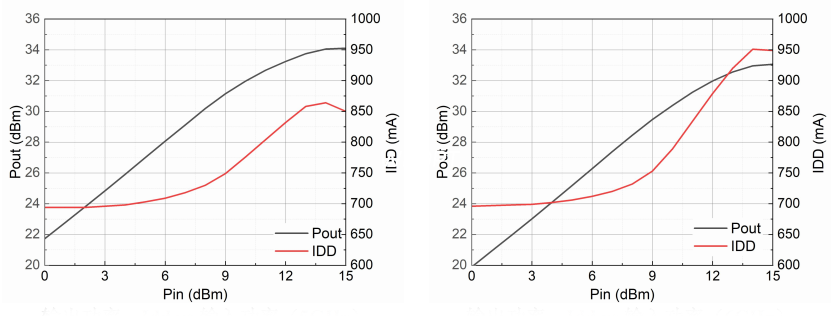

Typical Performance

(EVB test data, VDD=+8V，3.5GHz ~ 6GHz)

Performance Plots

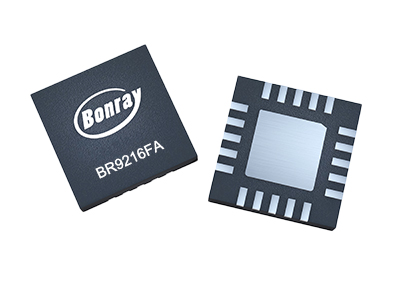

Chip Rendering
