Currently, anti‑jamming navigation has been widely adopted in fields such as low‑altitude UAVs, autonomous driving, ports and mines, and power timing, with system requirements for the anti‑jamming capability and noise performance of the RF front‑end continuously increasing.

Bonray introduces RF front‑end solutions for anti‑jamming navigation applications, helping navigation receiver front‑ends achieve high sensitivity and strong interference rejection.

Navigation RF Front‑End Solution

This solution features a core device combination of the ultra‑low insertion loss front‑end limiter BR9737FDJ and ultra‑low noise, high‑linearity LNAs (such as BR9927DAJ, BR9918DAJ, and BR9919DAJ), protecting the receiver front‑end while minimizing noise introduction, thereby assisting customers in efficiently completing device selection and solution implementation for the receiver chain.

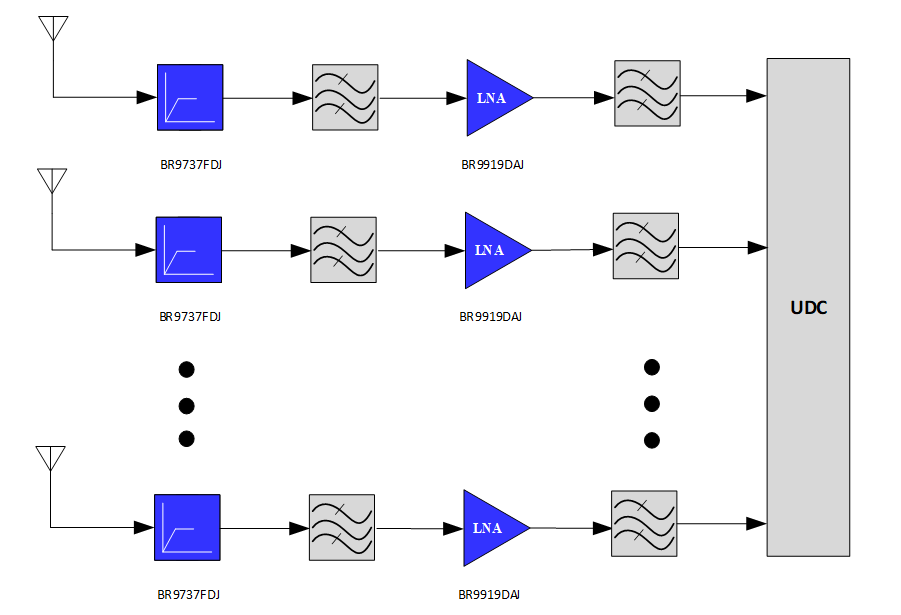

Navigation RF Front‑End Chain

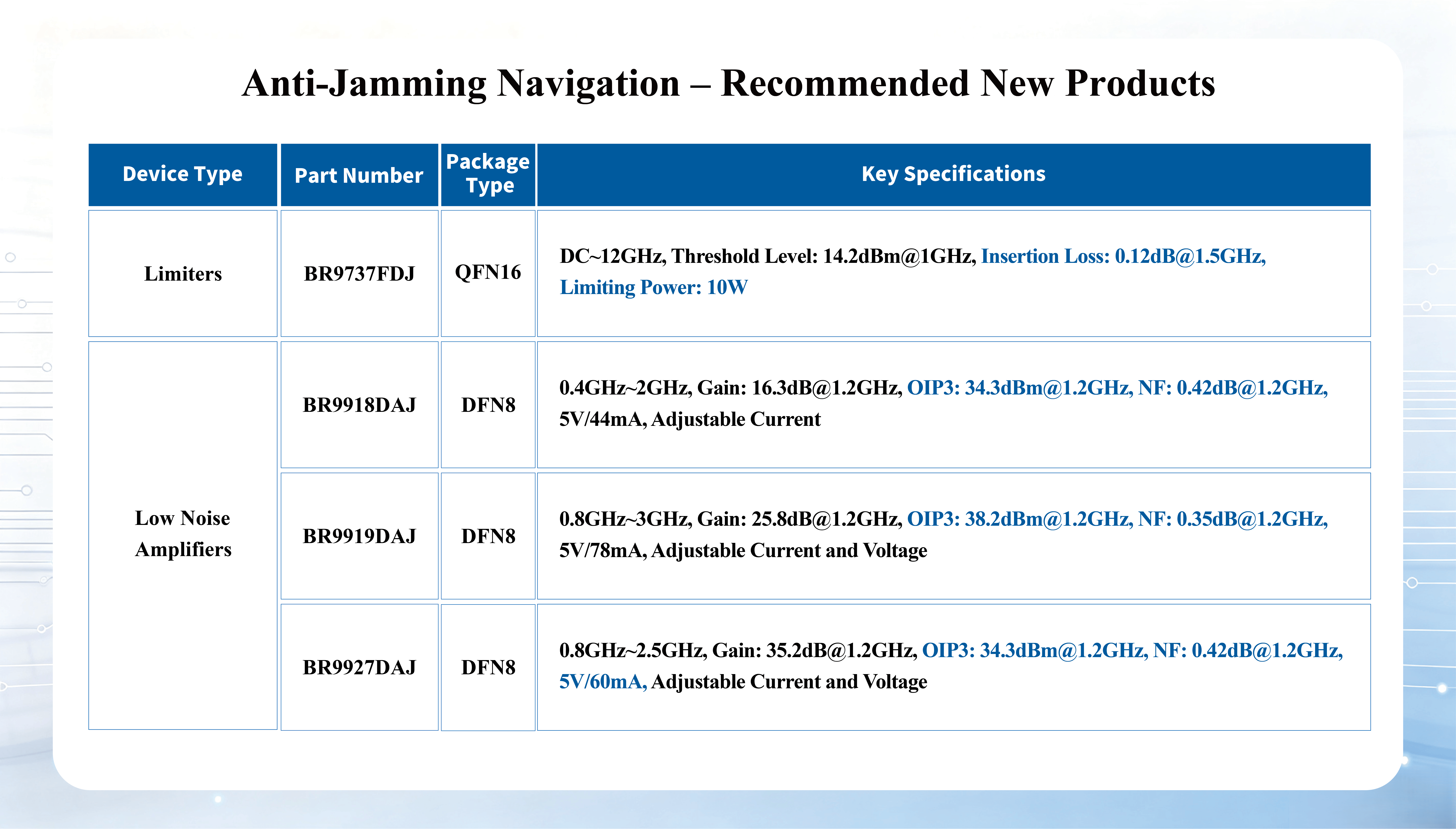

New Product Series Recommendations

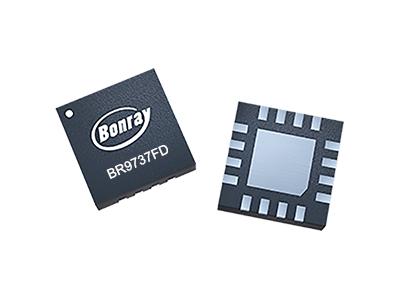

Key Features of the BR9737FDJ

  • Operating Frequency: DC~12GHz
  • Insertion Loss: 0.11dB@1.2GHz
  • Typical Threshold Level: +13dBm
  • Limiting Response Time: 2.0ns
  • Limiting Recovery Time: 17.2ns
  • Maximum Input Power: +40dBm (CW)
  • Package Type: QFN16 (3mm×3mm)

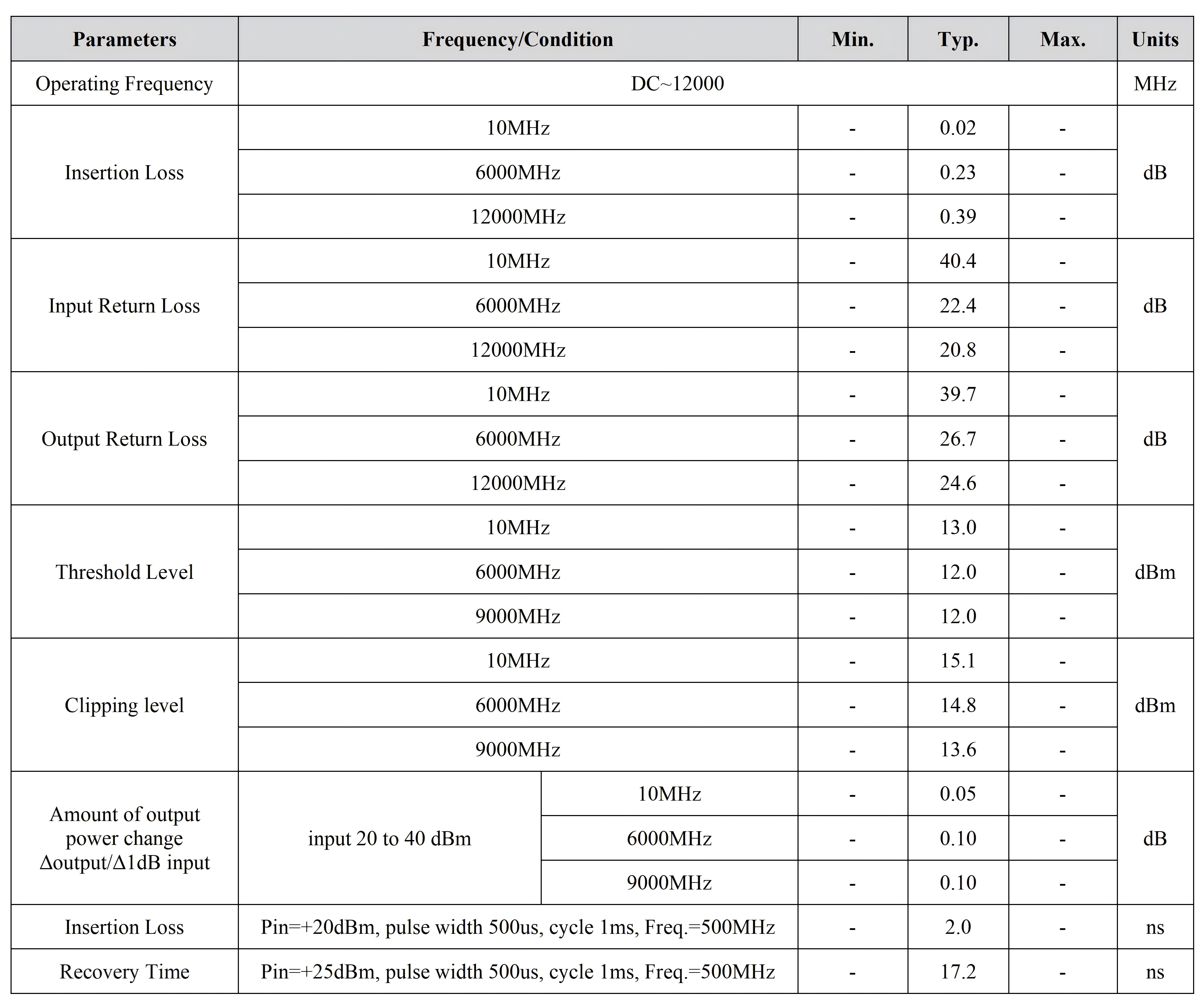

Electrical Specifications

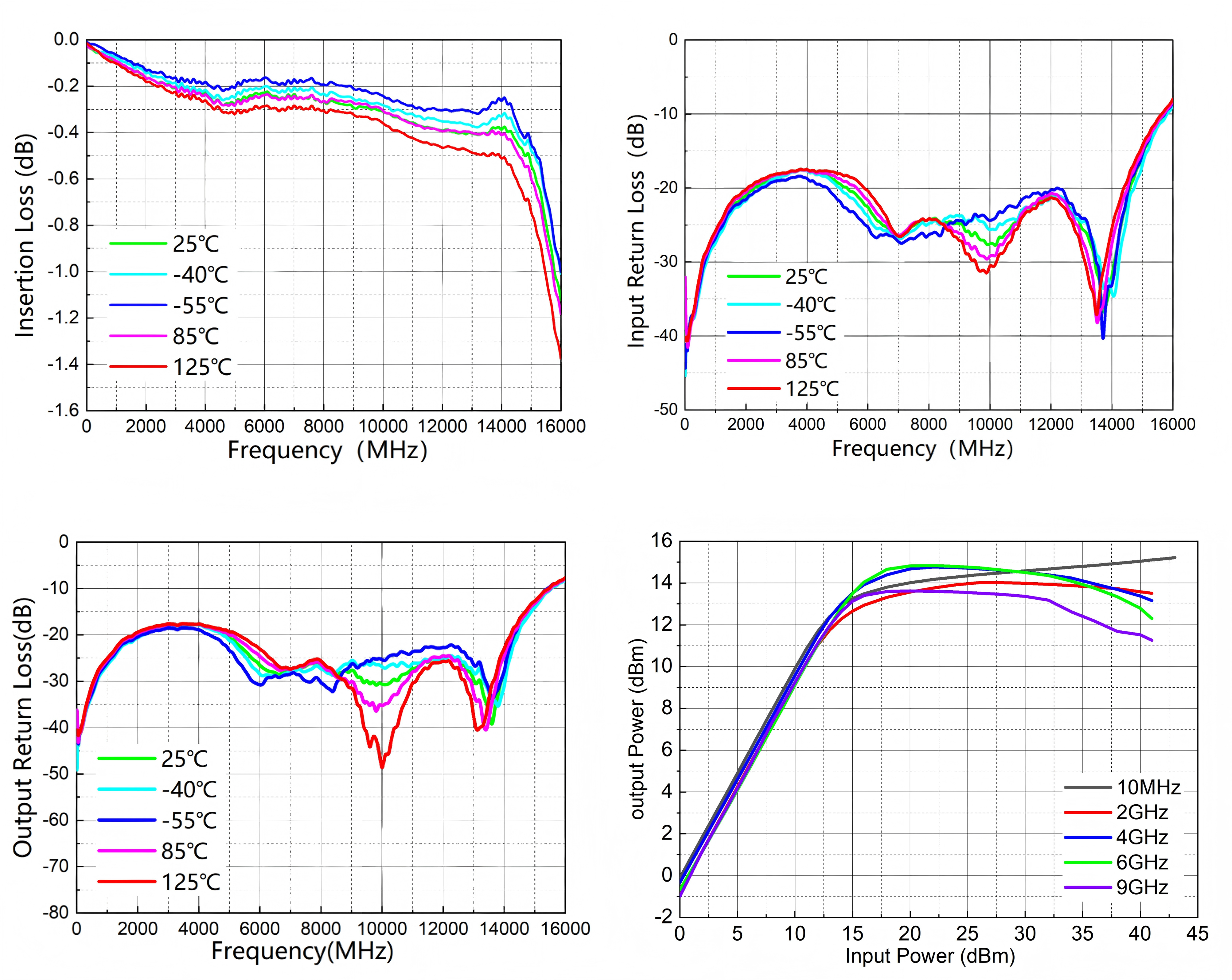

Performance Plots (EVB test results)

BR9737FDJ features low insertion loss, broad bandwidth, fast response time, high power handling, and low cost. It is widely applicable in receiver front‑ends, such as BeiDou anti‑jamming antennas, weather radar, and anti‑UAV detection equipment.

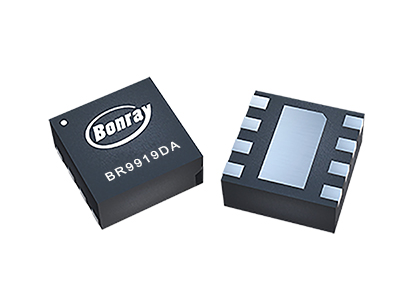

Key Features of the BR9919DAJ

  • Operating Frequency: 0.8GHz~3GHz
  • Package Type: DFN8 (2mm×2mm)

Vdd=+5V, Suppy Current: 78mA

  • Noise Figure: 0.35dB@1.2GHz
  • Small‑Signal Gain: 25.8dB@1.2GHz
  • OIP3: 38.2dBm@1.2GHz
  • OP1dB: 19.9dBm@1.2GHz

Vdd=+3.3V, Suppy Current: 27mA

  • Noise Figure: 0.65dB@1.2GHz
  • Small‑Signal Gain: 24.7dB@1.2GHz
  • OIP3: 28.5dBm@1.2GHz
  • OP1dB: 15.1dBm@1.2GHz

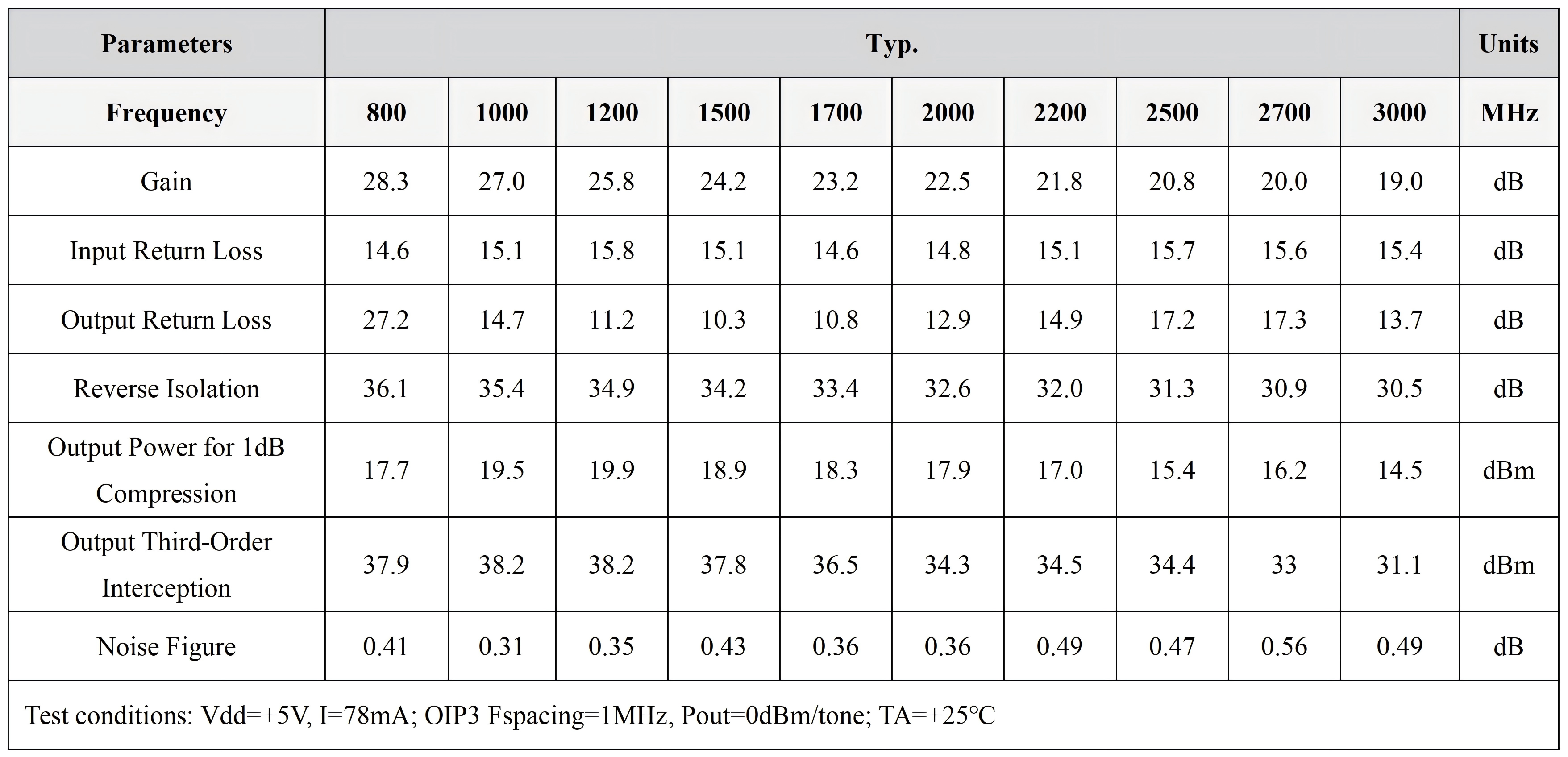

Typical Performance (EVB test results at +5V supply voltage)

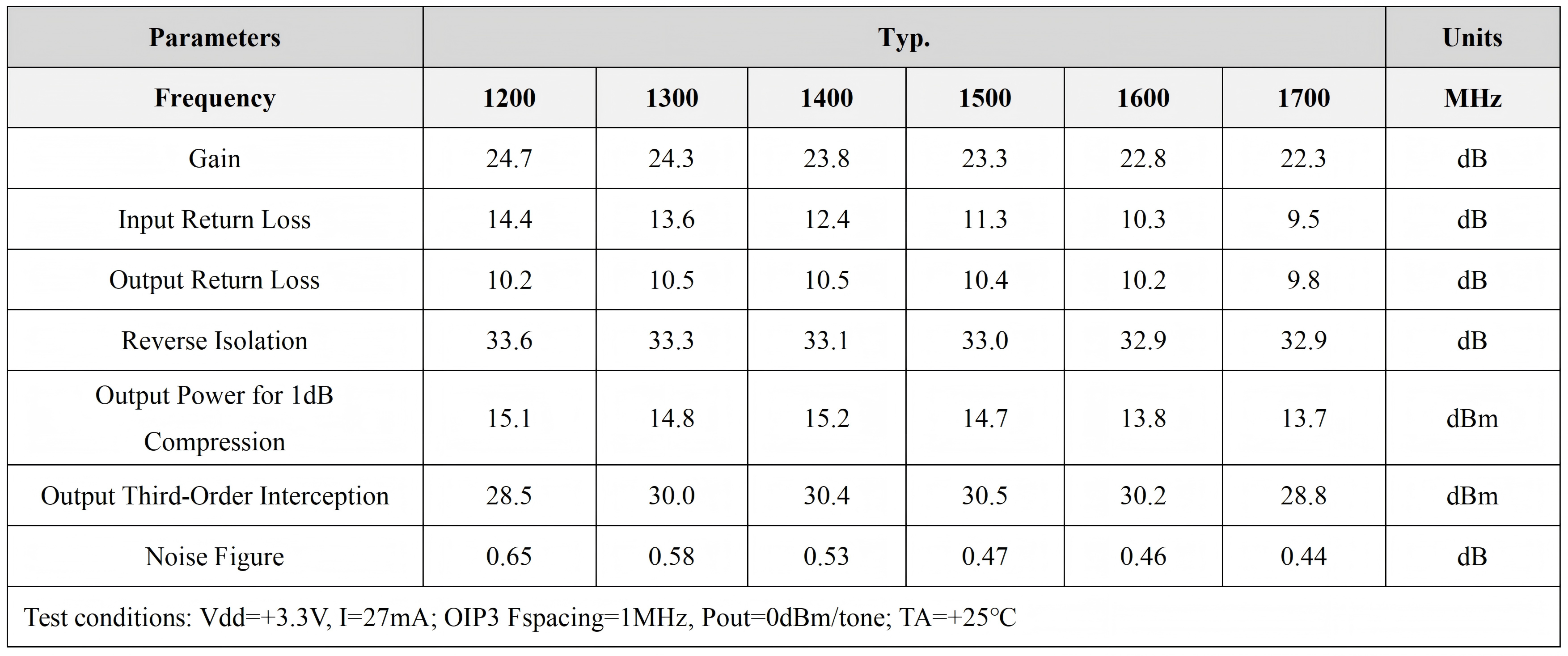

Typical Performance (EVB test results at +3.3V supply voltage, 1.2GHz~1.7GHz)

BR9919DAJ operates from a single +5V or +3.3V supply with an external bias circuit and supports external current adjustment. It offers ultra‑low noise, high linearity, low power consumption, and compact size, making it suitable for anti‑jamming BeiDou navigation and other applications.

Technology Outlook

The anti‑jamming navigation field holds vast potential and requires strong core technology to ensure reliable performance. In the future, Bonray Integrated Circuits will continue to increase R&D investment, focus on technological innovation and product iteration in RF devices, continuously break through technical bottlenecks, and deliver more high‑performance, competitive products.

Personalized Customization Services Available

For product selection, link solutions, technical debugging, or sample applications, please contact Bonray's technical and sales teams. We can provide personalized customized services according to your requirements.
