High Linearity, High IP1dB Anti-Blocking Amplifiers

Recently, Bonray has completed the iterative upgrade of two anti-blocking amplifiers, launching the new BR81221AFF and BR81231AFF. The two devices operate over a frequency range of 20MHz to 700MHz, adopt an SMO-8C package, and are pin-to-pin compatible with the original models, facilitating rapid customer integration.

Building upon the core advantages of high linearity and low noise, the new products focus on upgrading current consistency and ESD protection capabilities, providing more stable support for mass production applications. They support a wide voltage supply range of 5V to 9V, allowing flexible adjustment of power consumption and performance parameters to meet diverse customized specifications.

These products are widely applicable to receiver front-end scenarios such as radios and anti-jamming communication equipment, providing solid support for critical RF links.

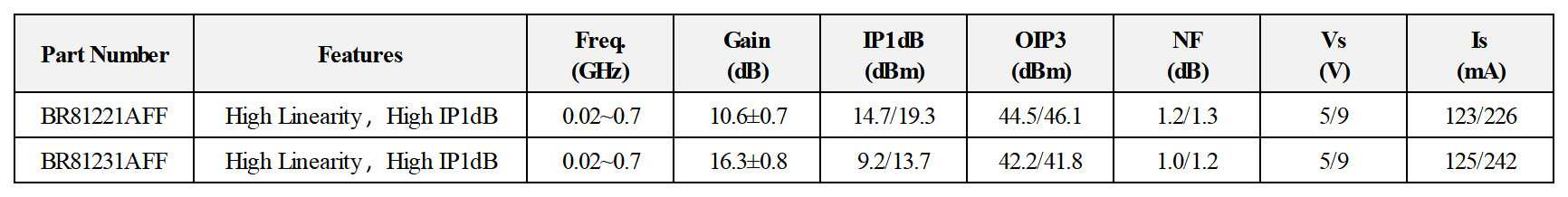

Overview of the Product Series

Key Features of the BR81221AFF

Operating Frequency: 20MHz ~ 700MHz
Package Type: Compatible with SMO-8C
Vdd = +5V, Typical Current: 123mA
Gain: 10.9dB @ 400MHz
Input Power for 1dB Compression: 14.7dBm @ 400MHz
Output Third-Order Interception: 44.5dBm @ 400MHz
Noise Figure: 1.2dB @ 400MHz
Vdd = +9V, Typical Current: 226mA
Gain: 11.1dB @ 400MHz
Input Power for 1dB Compression: 19.3dBm @ 400MHz
Output Third-Order Interception: 46.1dBm @ 400MHz
Noise Figure: 1.3dB @ 400MHz

Typical Performance

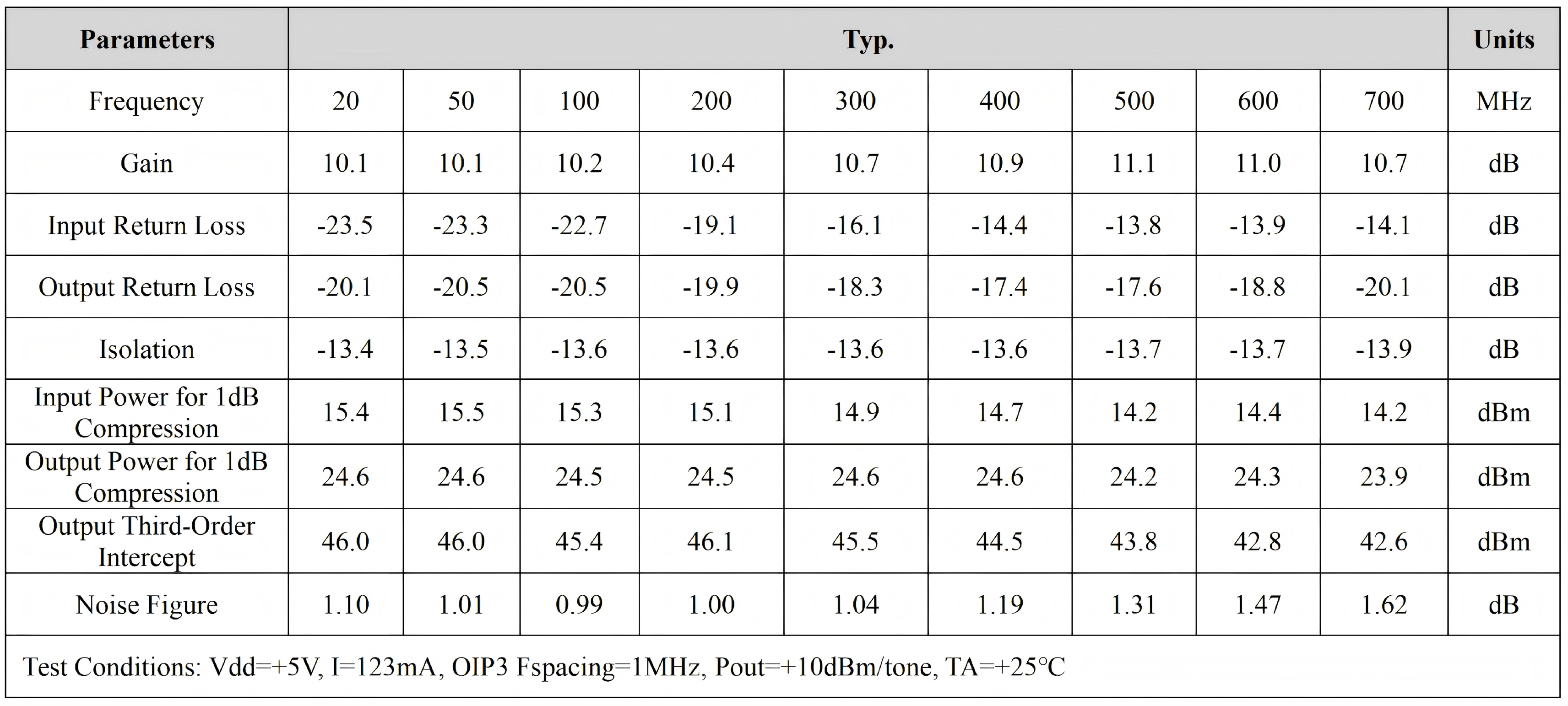

(EVB test results at +5V supply voltage, 20MHz~700MHz, 25℃)

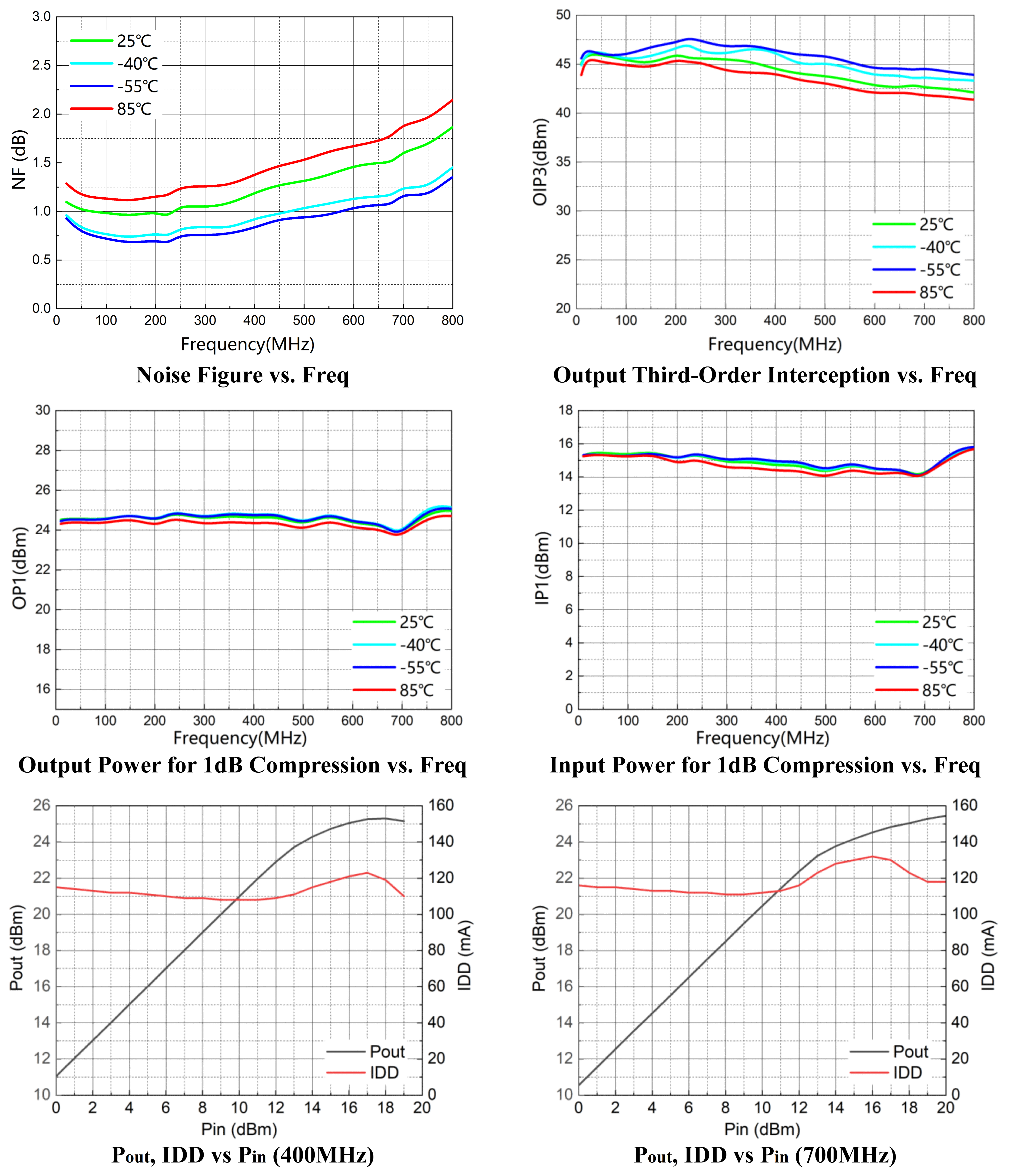

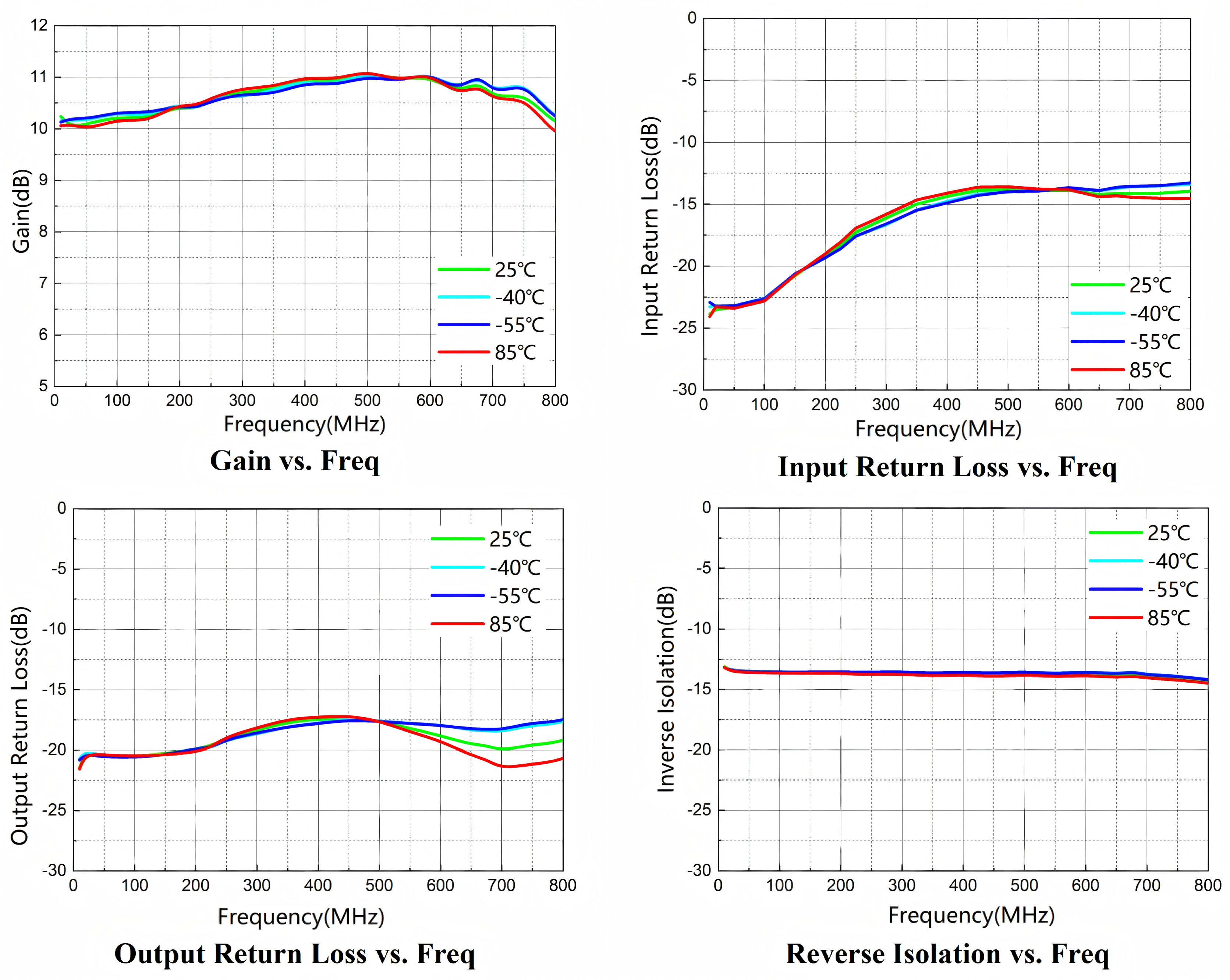

Performance Plots

(+5V supply voltage)

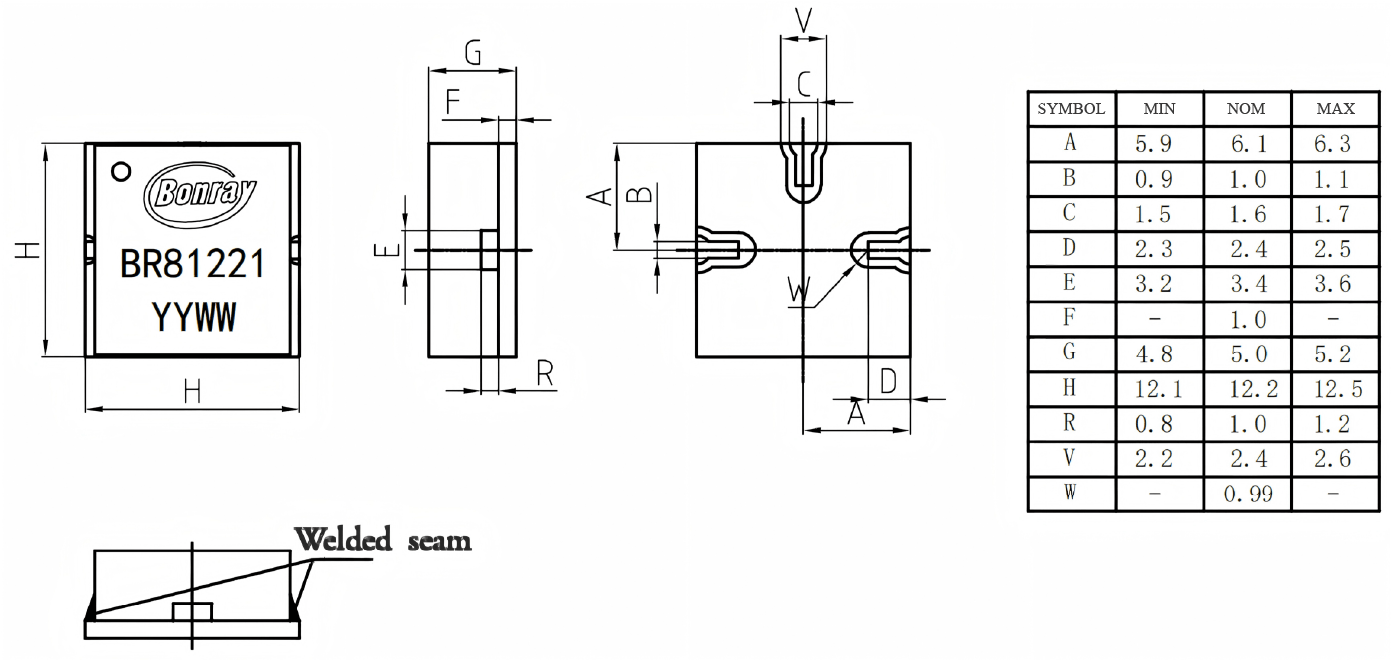

Package Information (unit: mm)

4 PIN description: The pin is GND grounded and needs to be welded. The weld surface size is 12.2mm x 12.2mm rectangle minus the pin pin avoidance size.
