Shutdown-Integrated LNA Series

Bonray has launched four new low-noise amplifier (LNA) models equipped with an integrated shutdown function. Operating across a frequency range of 0.03 to 6 GHz, these amplifiers offer selectable gain levels between 15 and 25 dB, and are distinguished by low noise figure, high linearity, and rapid response. The series incorporates shutdown features with a response time under 20 ns and supports an input power rating of up to 27 dBm.These devices deliver excellent performance in suppressing sudden high-level interference, multi-channel crosstalk, and complex transient electromagnetic interference, making them suitable for a broad range of applications in radio stations, satellite communication systems, and radar systems.

Furthermore, electrically grounding the Vlp pin significantly reduces power consumption, effectively supporting low-power designs.

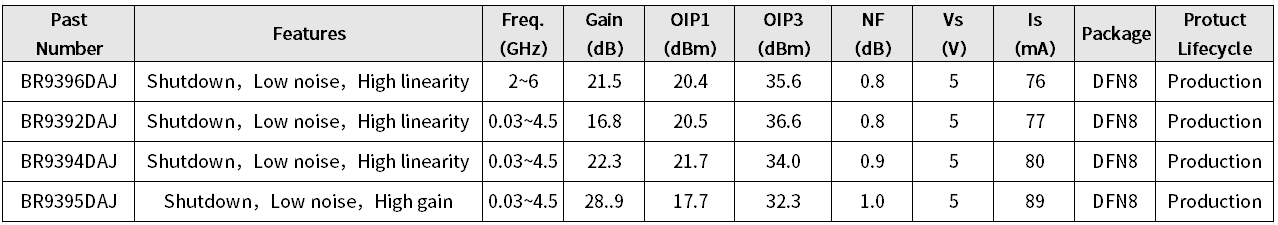

Overview of This Product Series

BR9396DAJ Brief Introduction:

Frequency：2GHz～6GHz

NF：0.8dB@4GHz

Gain：21.5dB@4GHz

OIP3：35.6dBm@4GHz

OP1dB：20.4dBm@4GHz

Vdd = +5V, quiescent current: 76mA

Vdd = 5V (Low-Power Mode), Quiescent Current: 35mA

Vdd = 3.3V, Quiescent current: 41mA

Vdd = 3.3V (Low-Power Mode), Quiescent Current: 19mA

Package Type：DFN8

Typical Performance

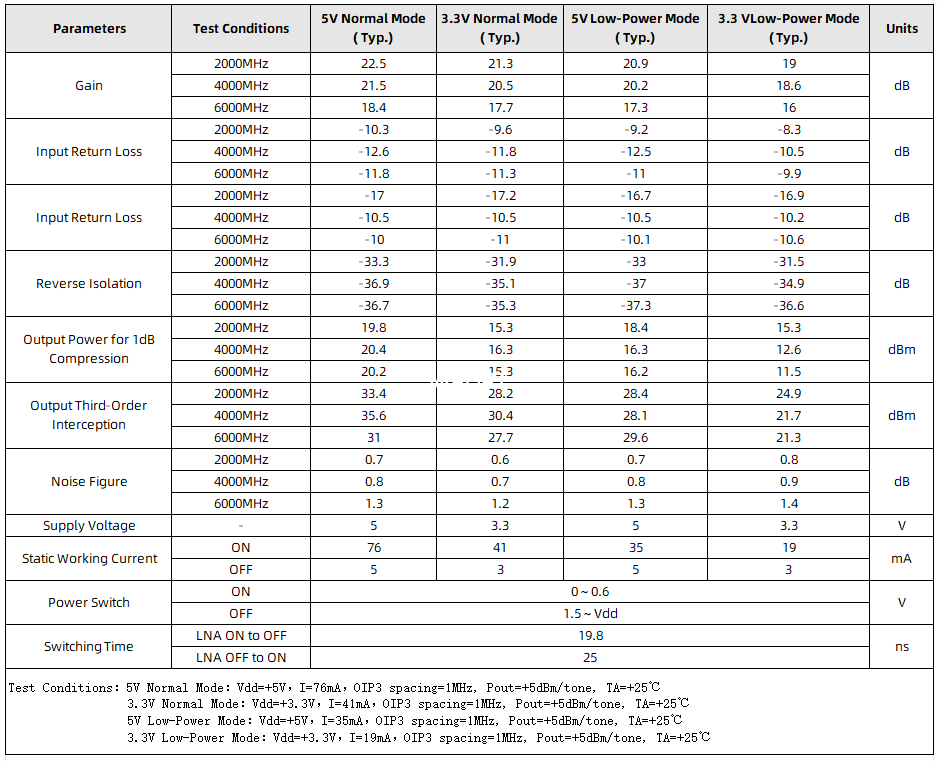

Technical Specifications (Electrical Performance Parameters)

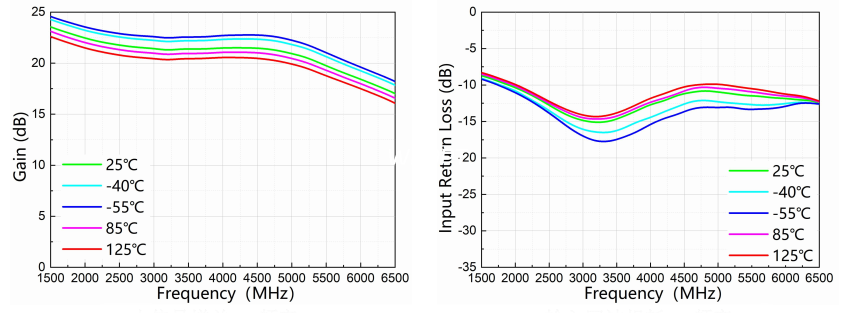

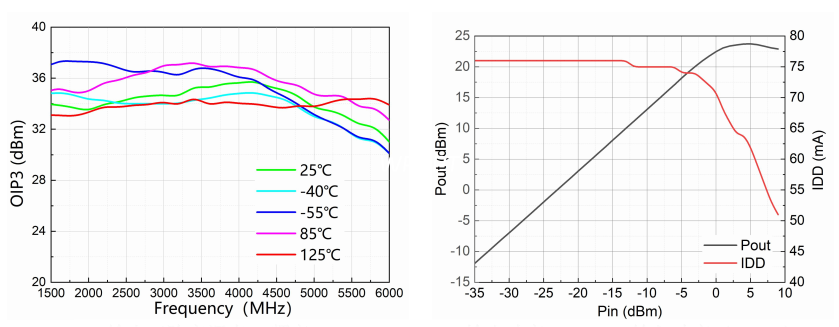

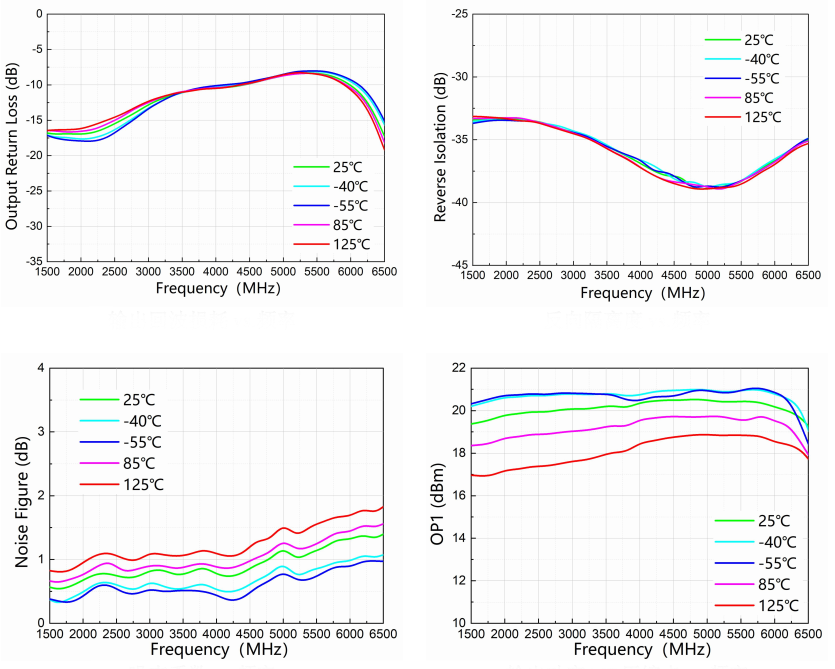

Performance Plots

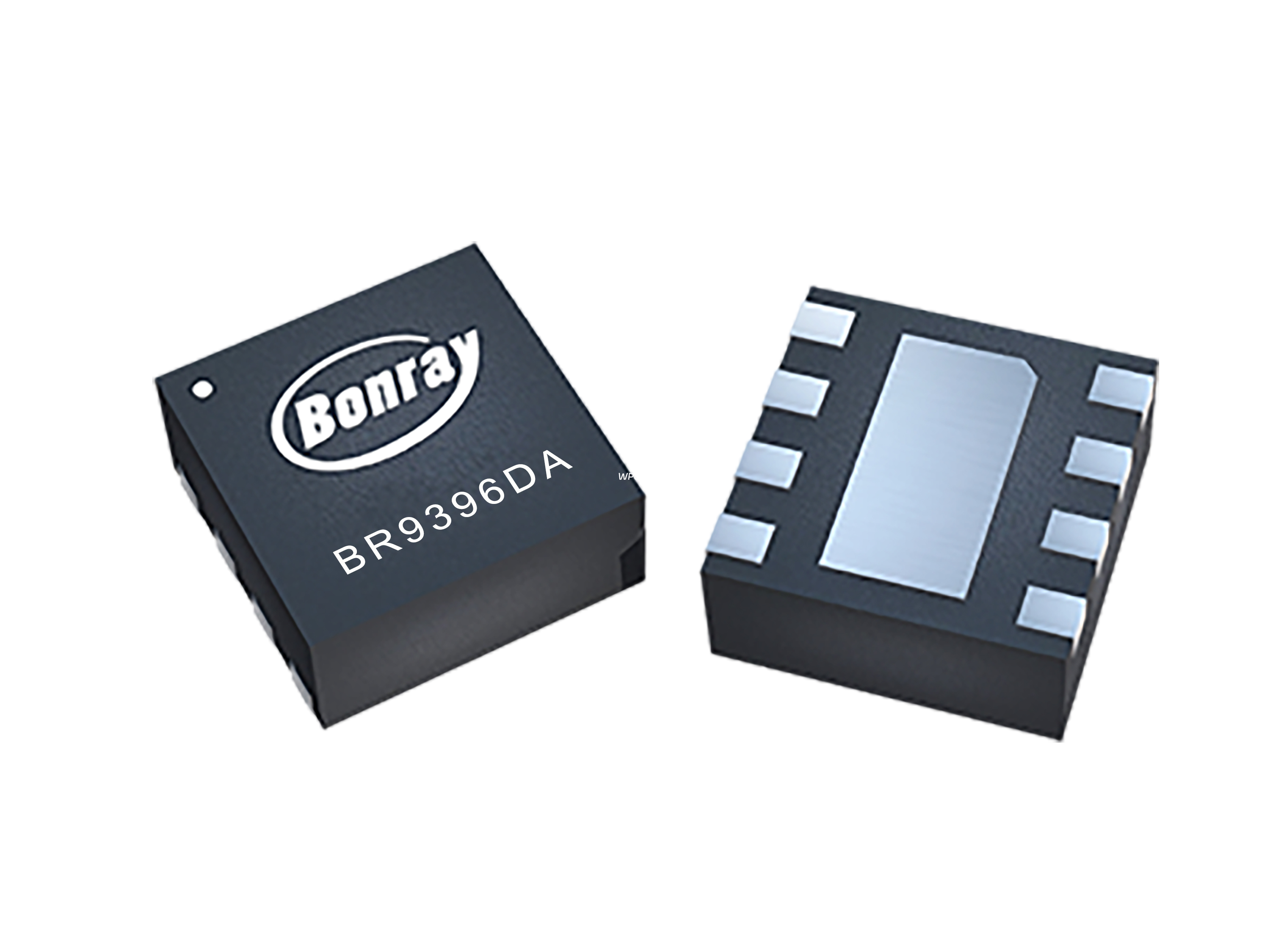

Chip Rendering
