BR9772FPJ

6GHz～18GHz Driver Amplifier

Product Data Sheet

8/11/2026

Features

  • Operating frequency: 6GHz ~ 18GHz
  • Small Signal Gain: 22.9dB@12GHz
  • OP1dB: 28.5dBm@12GHz
  • Psat: 28.5dBm@12GHz
  • PAE@Psat: 28.5%@12GHz
  • OIP3: 30.4dBm@12GHz
  • Recommended Bias: 450mA@VD=+6V

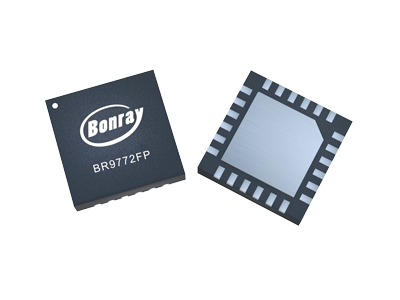

  • Package: QFN24 (4mm×4mm)

Additional Details

The BR9772FPJ is an MMIC Broadband driver amplifier, powered by a +6V drain-level power and the static current is 450mA. The amplifier covers the frequency range from 6GHz to 18GHz. With advantages of internal bandwidth matching, it can be widely applied in transmitter systems for broadband communications and electronic countermeasures.
