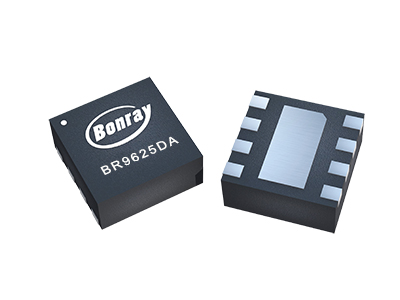

The BR9625DA is a wideband MMIC low noise amplifier manufactured using the GaAs process in a small 2×2mm surface-mount package. At 2GHz, the amplifier typically provides 18.01dB gain, 0.46dB noise figure, 21.79dBm output P1dB and 35.40dBm OIP3. The amplifier can be biased from a single positive supply ranging from +3 to +5 volts, and has a power down control capability integrated into the die for TDD applications with high linearity, low noise.
