BR9555TA

30MHz ~1GHz Low Noise Amplifier

Product Data Sheet

12/23/2025

Features

  • Operating Frequency: 30MHz ~ 1GHz
  • Gain: 27.8dB@100MHz
  • Noise Figure: 0.7dB@100MHz
  • Output Third-Order Interception: 38.6dBm @ 100MHz  38.7 dBm @ 1000 MHZ
  • Output Power for 1dB Compression: 23.9dBm@100MHz  23.4dBm @ 1000 MHZ
  • Supply Current: 117mA @ Vdd=+5V

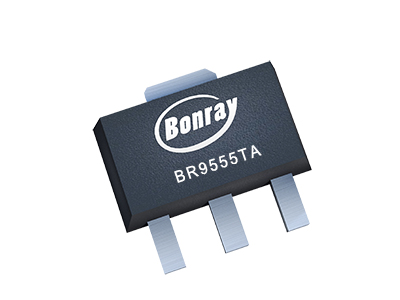

  • Package: SOT89

Additional Details

The BR9555TA is a MMIC low noise

amplifier using GaAs process. The amplifier is

internally matched to 50 ohms with frequency

range of 30MHz ~ 1GHz, and only require an

external RF choke and blocking/bypass

capacitors. The amplifier contains on-chip

active bias network to ensures that the

quiescent current is not affected by the process

and temperature. The product, with +5V single

power supply, provides high reliability, high

linearity, low noise, general package, etc.,

which makes the product can be applied in

system with high dynamic range.
