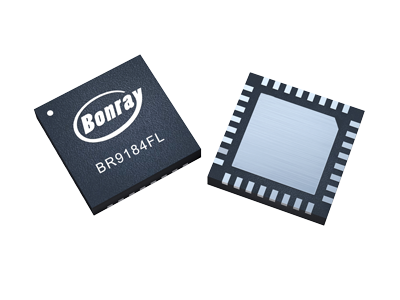

BR9184FL

13GHz～14.9GHz MMIC VCO

Product Data Sheet

10/22/2026

Features

  • Dual Output: Fo=13.0GHz~14.9GHz
  • Fo/2= 6.5GHz~7.45GHz
  • Broadband Voltage-Controlled Oscillator (VCO)
  • Supply Voltage: 5V
  • Current Consumption: <300mA
  • Pout: >4dBm (RFOUT)
  • Phase Noise: -103dBc/Hz@100kHz (VTUNE=5V)

Additional Details

The BR9184FL is a gallium arsenide heterojunction bipolar transistor (HBT)-based MMIC VCO, capable of generating sinusoidal signals from 13.0GHz to 14.9GHz. With a tuning voltage range of 0V to 13V and a maximum Kvco of 1.3GHz/V, it offers wide frequency coverage.
